Features
Clear, high-fidelity performance
At a cost effective price point
High sensitivity drivers
Deliver maximum sound levels using minimal amplifier power
Dog-ears
For easy blind mount Installations
6W Transformer
For use of 70V / 100V Distributed Lines
Open-back design
For applications not requiring an in-ceiling backcan
Specs & Downloads
Item#: 8128
Product Description

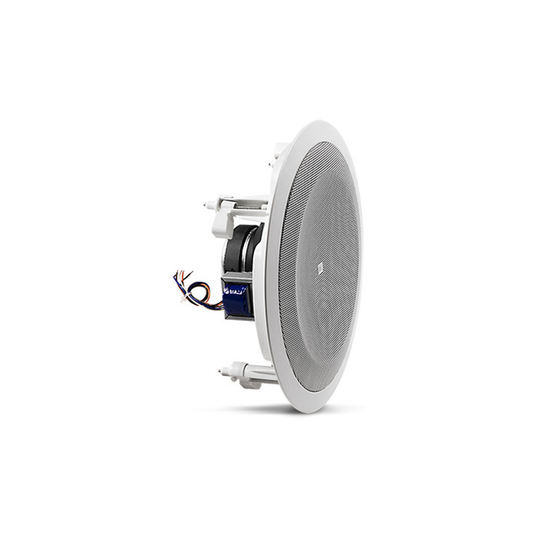

8-inch, Full-range, In-Ceiling Loudspeaker
The 8128 is a 8-inch, full-range, cost-effective loudspeaker for commercial applications. The 8128 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a back can for installation.
General Specifications
Component
8 in (200 mm), full-range driver
Frequency Range
50 Hz – 16 kHz
Sensitivity
97 dB (1 kHz – 8 kHz), 1W, 1M
Coverage
90° conical
70V/100V Taps
6W, 3W, 1.5W (0.75W at 70V only)
Termination
Bare wires
Nominal Driver Impedance
8 ohms
Driver Power Capacity
25 W
Plenum Usage
Not intended for use in return air plenums
Included Accessories
Sculpted Grille
Optional Accessories
MTC-8124C C-ring, MTC-Rail tile rails
Dimensions
Diameter
11.3 (287mm)
Depth
4.1in (105mm)
Weight
3lb (1.4kg)
Cutout Dimension
260 mm diameter (10.1 in)
What's in the box?
- 1 x 8128 Ceiling Speaker
- 1 x Sculpted Grille
